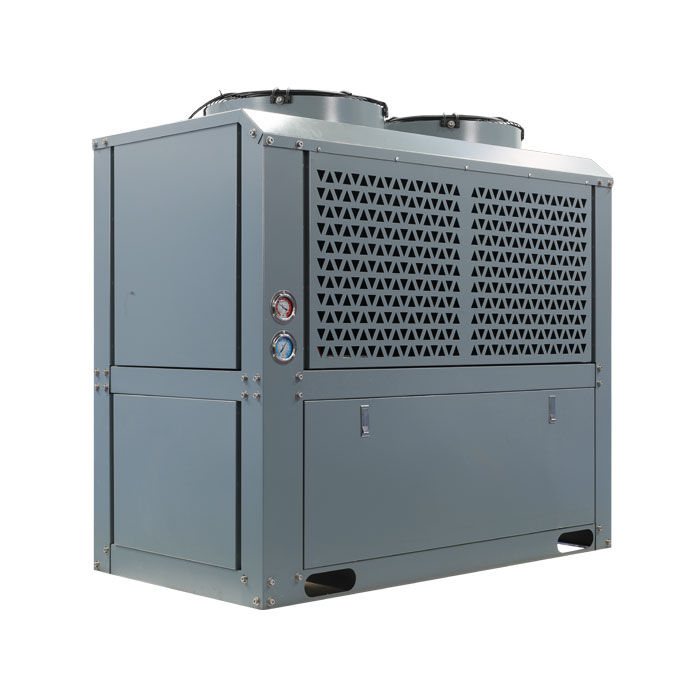

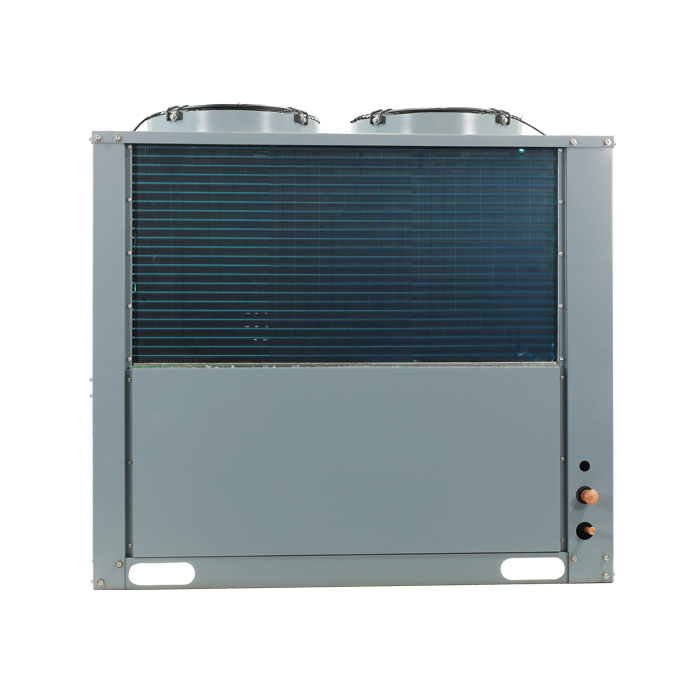

U Type Air Cooled Refrigeration Condenser For Cold Room
U Type air cooled condensers are mainly equipped with large heat transfer demand, large-scale remote-mounted condensing units, piston parallel units and screw units, with good heat transfer capacity.
The copper tube and fin are closely combined
Structure : Horizontally installed, side-mounted
Environment : 60°C~-40°C
Painting plate : International 1.0mm TK
Refrigerant : R22, R404A, R507A, etc.
Fan specification : 400mm, 500mm, 630mm (4-pole, 6-pole)
Categories
New Products
Product Detail
U Type air cooled condensers are mainly equipped with large heat transfer demand, large-scale remote-mounted condensing units, piston parallel units and screw units, with good heat transfer capacity.
Refrigeration Condenser Feature
1. Adopt high-quality steel plate with powder coating RAL9003;
2. Flat-plate structure design can be adopted, either horizontally installed or side-mounted;
3. Copper tube and corrugated aluminium fins with a distance of 2.l mm are used.
4. Fan specifications adopt 500mm and 630mm, divided into 4-pole and 6-pole motor；
5. Testing pressure 32bar, Retain 1.5bar pressure before leaving factory;
6. It can meet the requirements of R22, R134a, R404A, R507A, R407A, R407C,R448A,R449A and other refrigerants.
Refrigeration Condenser Advantage
1. Water resource is no needed and The operation cost is low.
2. Easy to install and use.
3. It will not pollute the environment.
4. It is suitable for areas where water shortage is serious or water supply is difficult.

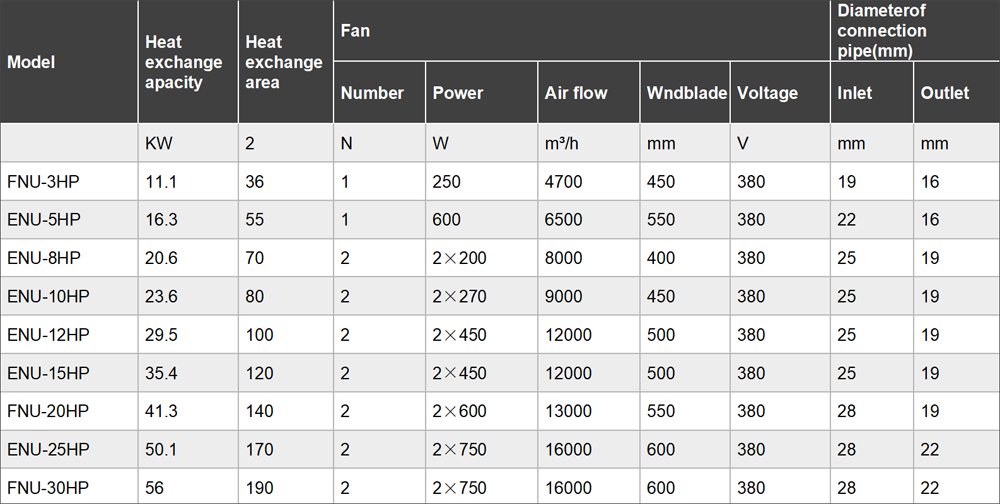

Refrigeration CondenserParameters
* Contact us for more models and parameters.
