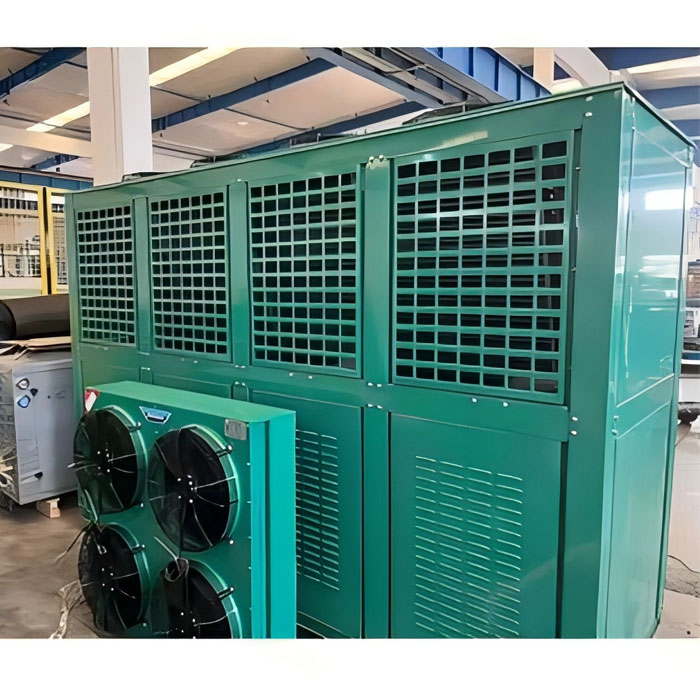

V type air cooled refrigeration condensers are mainly equipped with large heat trangsfer demand, large-scale remote-mouned condensing unit, piston parallet units and screw units. It features simple structure, small floor coverage, excellent anticorrosion performance and so on.

Condenser Feature

● V-type structure design can be adopted , having larger windward area.
Copper tube and corrugated aluminium fins with a distance of 2.1 mm are used.
● Fan spacifications adopt 500mm and 630mm , divided into 4 pole and 6 pole motor.
● Testing pressure 32bar, aguarabteeing the products' high gas tightness.
● Adopt high quality steel plate with powder coating .
● It can meet the requirements of R22 , R404A ,R507a and other refrigerants.

● Retain 1.5bar pressure before leaving factory.

Refrigeration Condenser Advantage

● Water resource is no needed and The operation cost is low.
● Easy to install and use.
● It will not pollute the environment.

● It is suitable for areas where water shortage is serious or water supply is difficult.

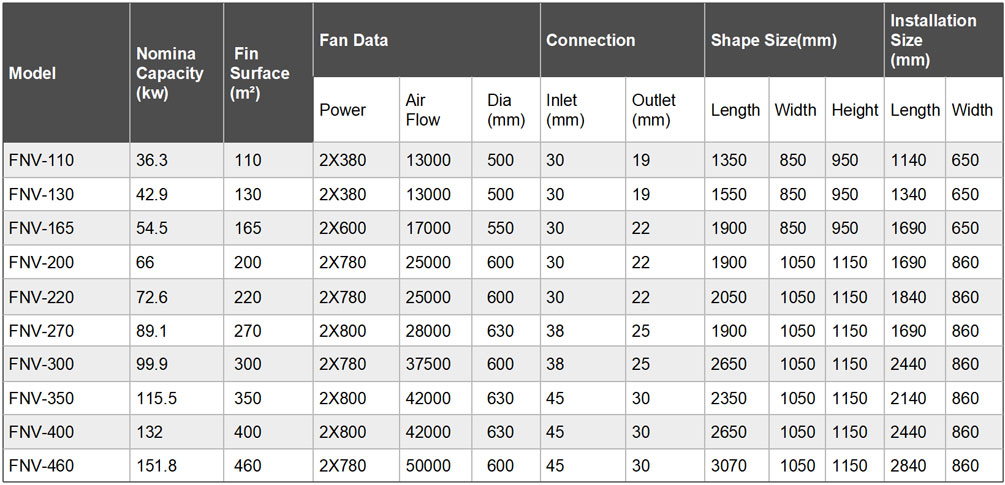

Refrigeration Condenser Parameters

* Contact us for more models and parameters.
