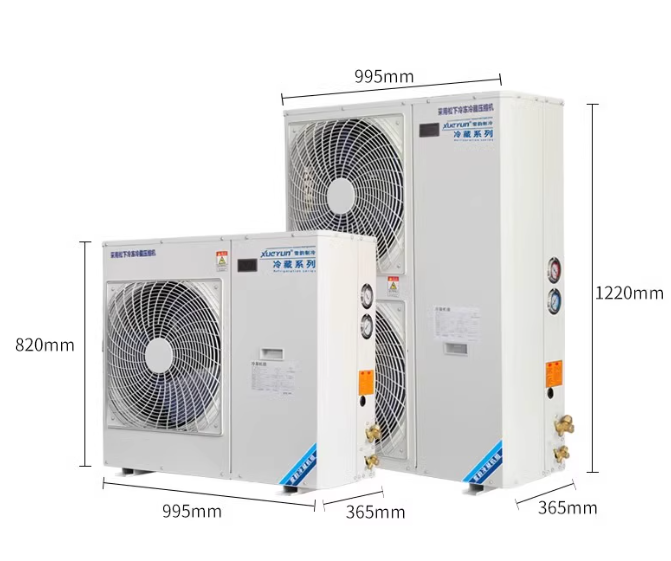

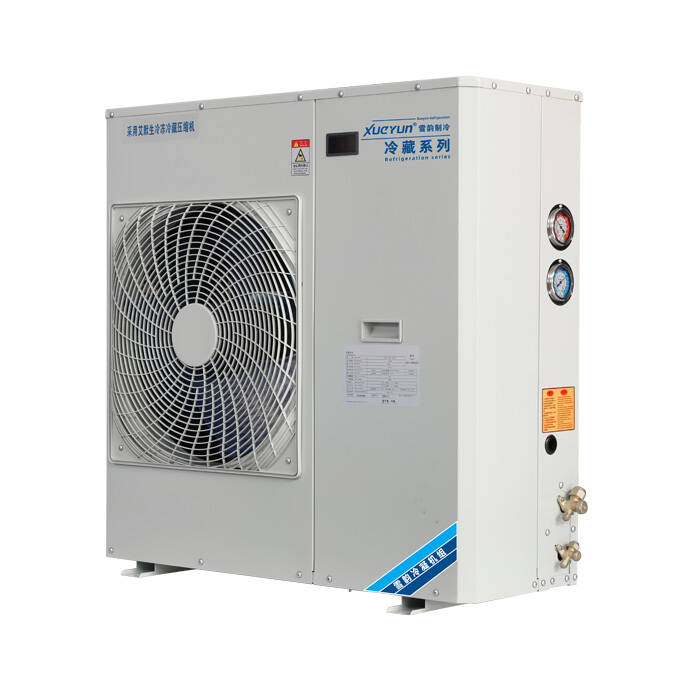

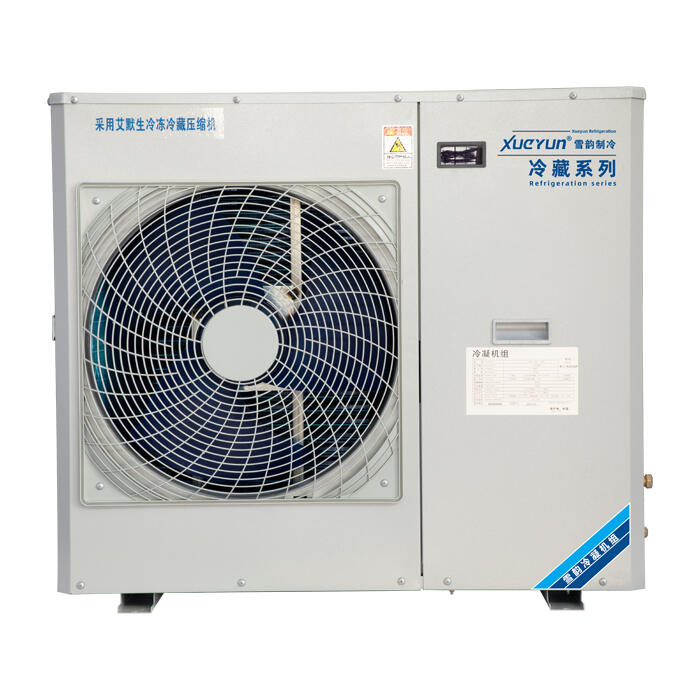

Copeland Compressor Outdoor Condensing Unit
Hermetic box-type Copeland(Emerson) scroll Condensing Unit for cold room sales from Xueyun that is designed for refrigeration application at evaporation temperature +5℃~-40℃.
Important Parameter Description | |
Compressor Type | Scroll Compressor |
Compressor Brand | Copeland (Emerson) |
Certification | CE, ISO9001 |
Compressor HP | 2~10HP |
Condenser | Air-Cooled |
Condenser Fan | Axial flow |
Refrigerant | R22/R404A/R507A |
Power | 220V/380V/50-60Hz |
Application | Cold Room(-10℃ to 5℃) Freezer Room(-25℃ to -10℃) |
Categories
Product Detail
Copeland scroll air-cooled condensing units utilize multi-stage control for efficient operation and significant energy savings. Fault alarms and detection functions ensure users are constantly updated on unit operating conditions. Copeland condensing units meet a wide range of temperature requirements, from -5°C to -40°C. They are widely used in hotels, restaurants, pharmaceuticals, agriculture, and the chemical industry, effectively meeting refrigeration needs.

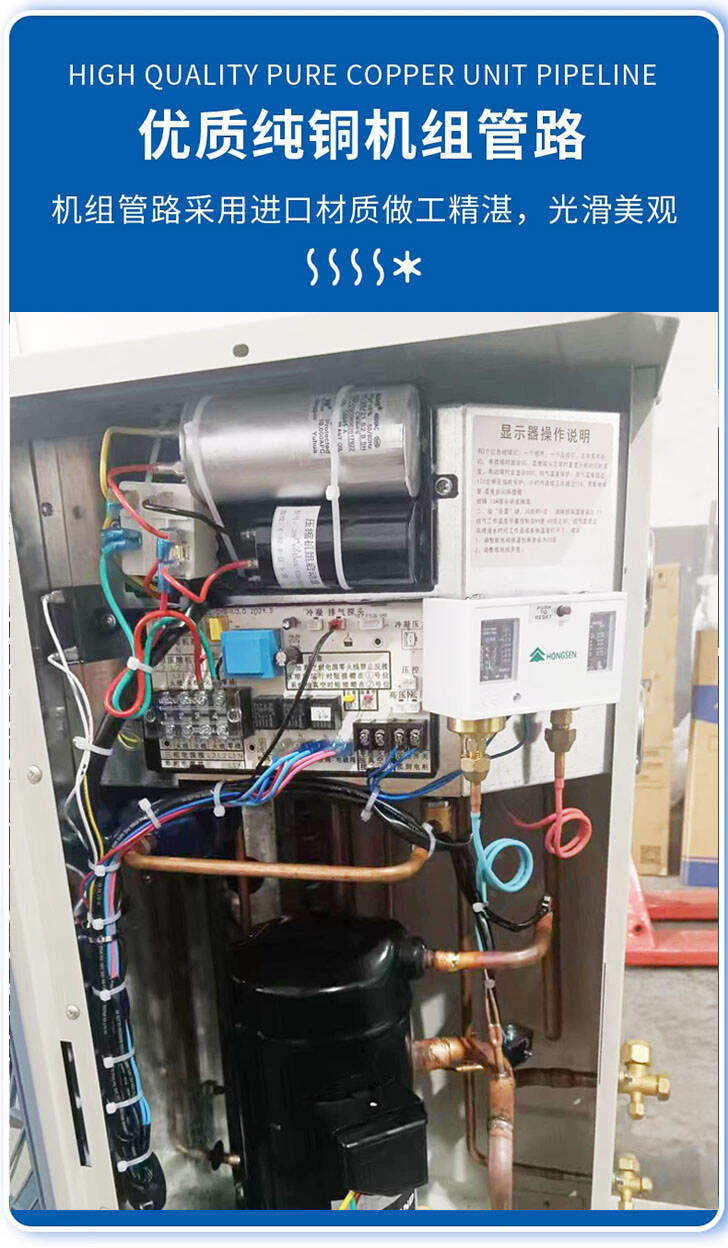

The condensing units utilize Copeland fully hermetic or semi-hermetic air-cooled scroll compressors and high-quality Chinese-branded refrigeration components (which can be replaced with Danfoss components).
The condensing units provide protection against phase loss, overcurrent, compressor start-up failure, discharge temperature, and system temperature. They also adjust fan speed based on condensing temperature and include fault alarms.

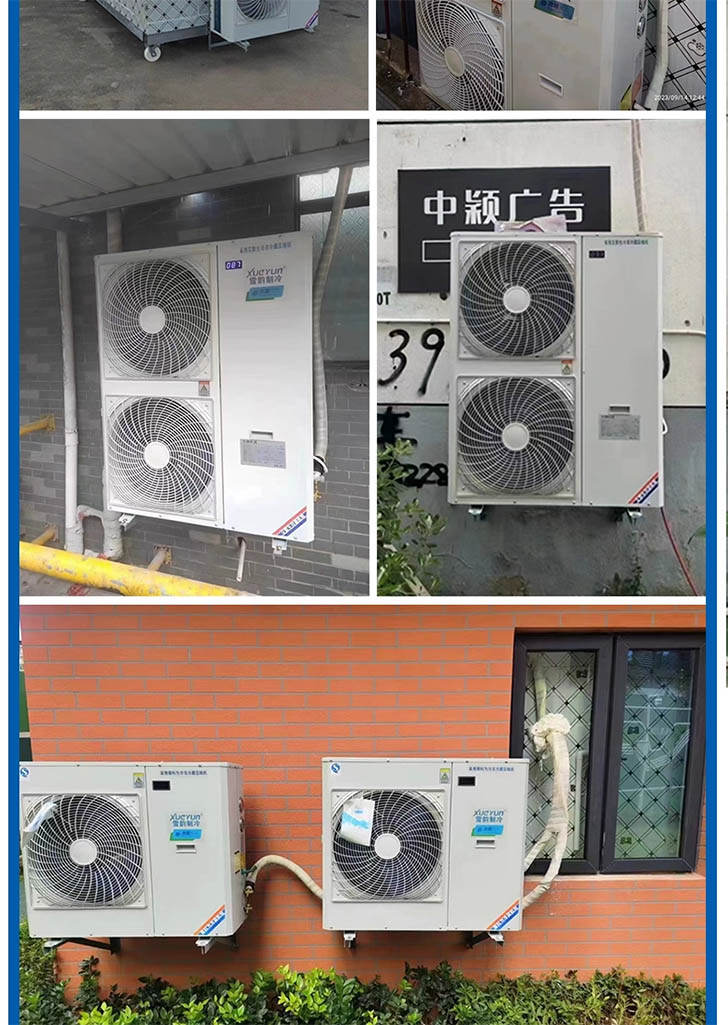

Product application
Key attributes
Copeland Condensing Unit Parameters
*Contact us for more models and parameters
