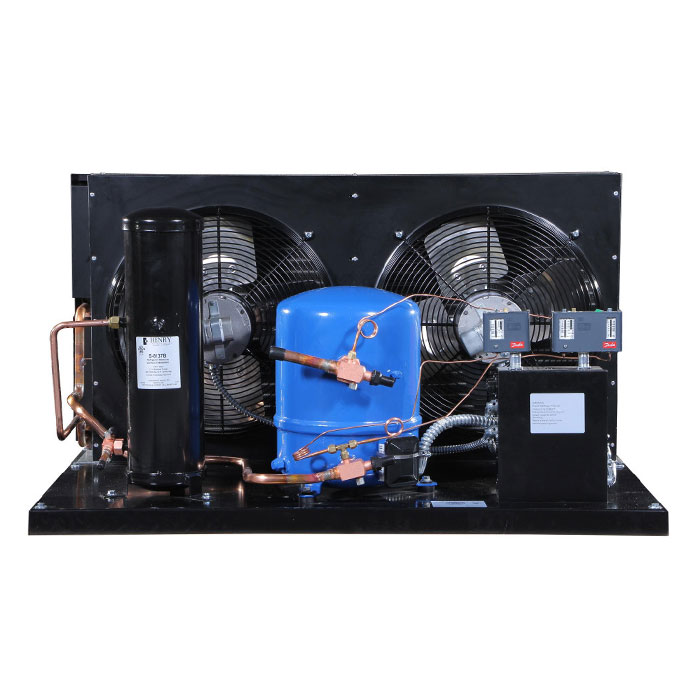

Danfoss Condensing Unit Danfoss Air Cooled Condenser Unit
Danfoss condensing unit, danfoss air cooled condenser unit, semi-hermetic piston compressor, medium/low temperature. Horsepower is 2 to 176HP,equipped with word-famous brand parts.
Compressor Type : Semi-hermetic Compressor
Compressor Brand : Danfoss etc.
Compressor HP : 2-176HP
Condenser : Air Cooled
Condenser Fan : Axial flow
Refrigerant: R22/R404A/R507A
Power : 200V/380V/50-60HZ
Size: 960×450×1260MM etc.
Application : Cold Room/Freezer Room
Categories
New Products
Product Detail
Danfoss Condensing Unit Description
Danfoss condensing units in cold storage aims to provide a stable, efficient, and reliable refrigeration solution to meet various storage needs, including food, pharmaceuticals, chemicals, and more. They contribute to maintaining the quality and safety of goods within the cold storage while lowering operational costs. The series caters to various temperature requirements: -5℃~5℃ and -15℃~-30℃. Versatile across hotels, restaurants, pharmaceuticals, agriculture, and chemicals, these solutions fulfill cold storage needs effectively.
Danfoss air cooled condenser unit includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Cranckase Heater, Rotolock Valves. These units optimize efficiency and prolong equipment life through direct-intake compressor operation, motor air-cooling, and a well-matched condenser/fan unit. Danfoss condenser with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload.
Danfoss Condensing Unit Features
● Danfoss semi-hermetic piston compressor, Compressor rack is available (2HP~176HP).
● Efficient Danfoss condenser in reliable tube fin design, copper tube-aluminum fin air-cooled condenser.
● Danfoss condensing unit for medium and low-temperature cooling applications.
● Top reliability in demanding ambient temperatures.
● Widely applied and can use R22, R404A, R134A, R507, etc.
● Frameless compact structure,sturdy and durable.
● Electronic oil balances high pressure return to ensure the reliability of oil return.
● Each exhaust branch is equipped with a unidirectional valve to avoid system ventilation and low vibration to ensure system reliability.

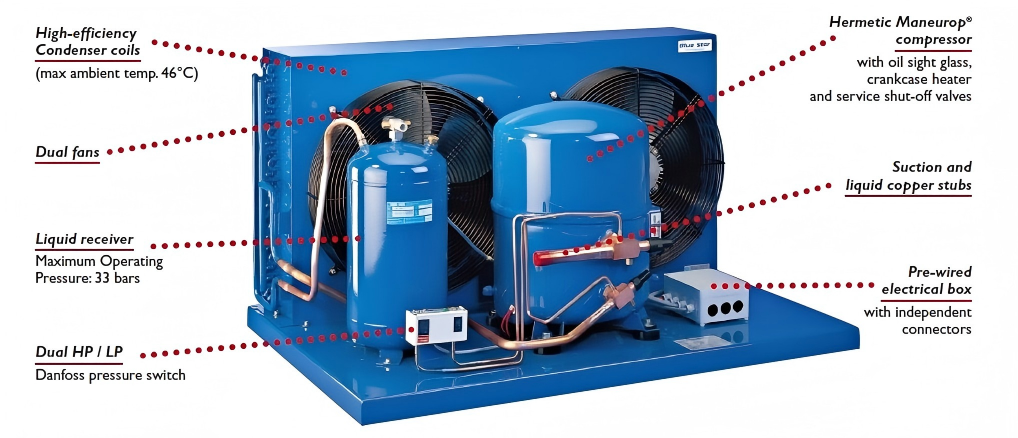

Danfoss Condenser Unit Components
1.Compressor 2.Condenser 3. Oil heating 4. Liquid receiver 5.Filter 6.Sight glasses 7. Solenoid valve 8.H/L P gauge 9.Pressure controller 10. Oil pressure protection 11.Vibration eliminator 12.Oil separator 13.Gas separator 14. Suction filter
