Cold Room Sandwich Panel PU Cold Freezer Panel Insulation Panels

Cold storage PU panel also call polyurethane cold storage board or insulated panel for cold storage, type included cam-lock type PU panel and Plug-in type PU panle. Thickness 150mm/100mm/75mm can be use in -40°C and 20°C cold storage.

Width : 960mm or 1000mm

Thickness : 50mm, 75mm, 100mm, 120mm, 150mm,180mm and 200mm

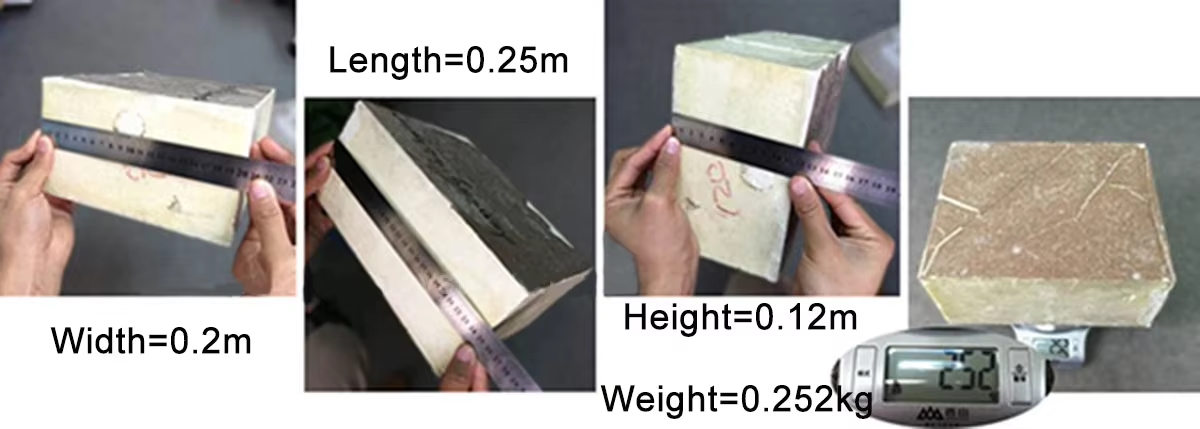

Density : 38-42 kg/m³

Thermal Conductivity : 0.015-0.023w/(m,k)

Flame Retardant Grade : B1 and B2

Layers : zinc coated, galvanized steel, embossed aluminum and stainless steel

Inquiry now

New Products

Large-scale Cold Storage Rooms Freezer Rooms

20FT/40HQ Cold Storage Walk in Cold Room Manufacturers

Box-type Emerson Condensing Unit with Scroll Compressor

Semi-hermetic Condensing Unit with Reciprocating Piston Compressor

L Type Air Cooled Condenser For Cold Room

H Type Air Cooled Condenser For Cold Room

Product Detail

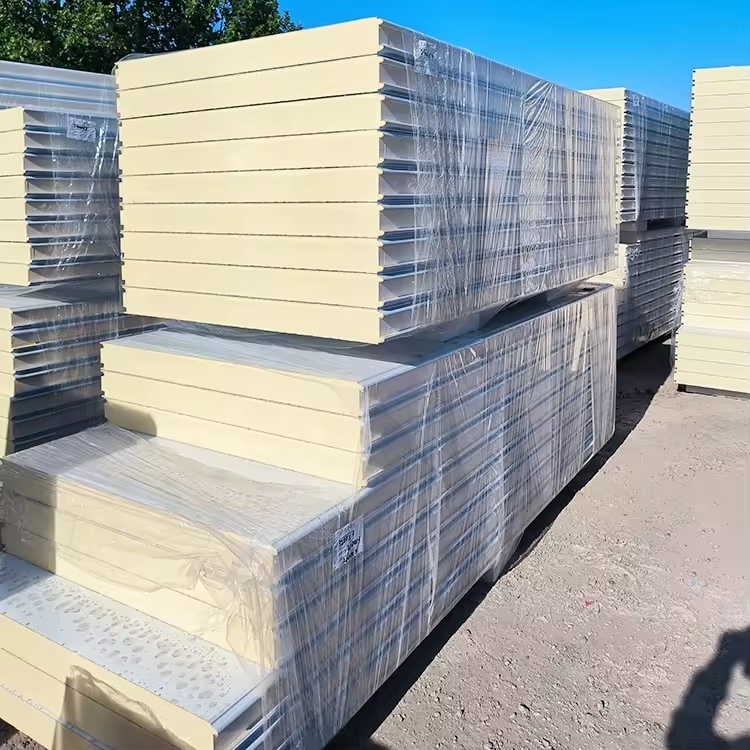

Cold storage panels

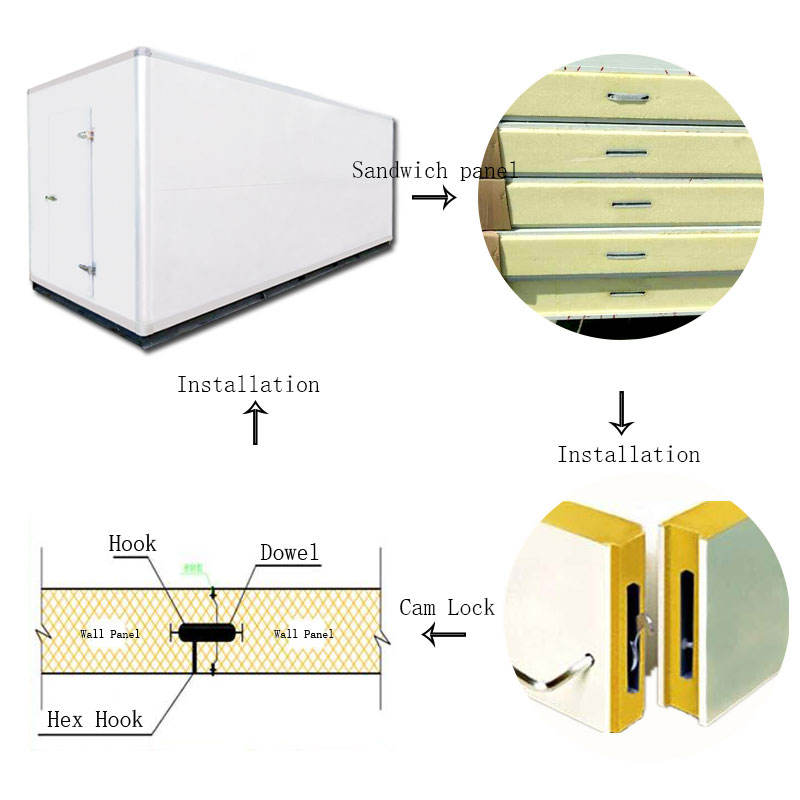

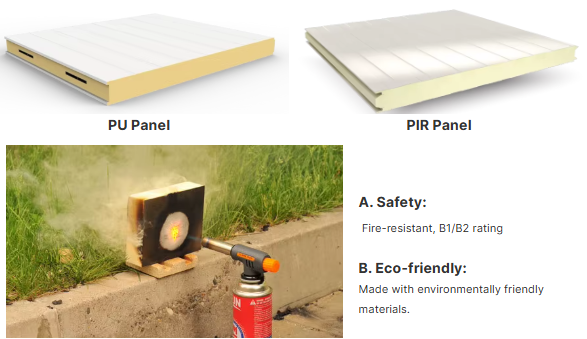

There have two popular types of cold room panels. One is PU panel, another is PIR panel.The differences of these two types are fireproofing grade, cam lock, and installation cost and lifetime. Our PU panel can reach B2 fireproofing grade, with durable zinc-coated cam lock, and 42 kg/m3 high density PU foam, and very easy to install. It can keep cold room lifetime to 20 years at least.

XUueyun PU panels are available in customized sizes and structure for storage temperature ranges from -40°C to 20°C. The outer two layers are available in profile with zinc coated, galvanized steel, embossed aluminum and stainless steel etc., that can meet the international hygiene standards

Details

1. Panels thickness

Panels thickness	heat transfer coefficient (w/m2·k) PU/PIR	Temperature difference inside and outside cold room	Suitable temperature for cold room
75mm	0.267/0.3	40°C	-5~25°C
100mm	0.2/0.23	50°C	-15~25°C
150mm	0.133/0.15	70°C	-25~25°C
180mm	0.11/0.125	80°C	-35~25°C
200mm	0.1/0.113	90°C	-50~25°C

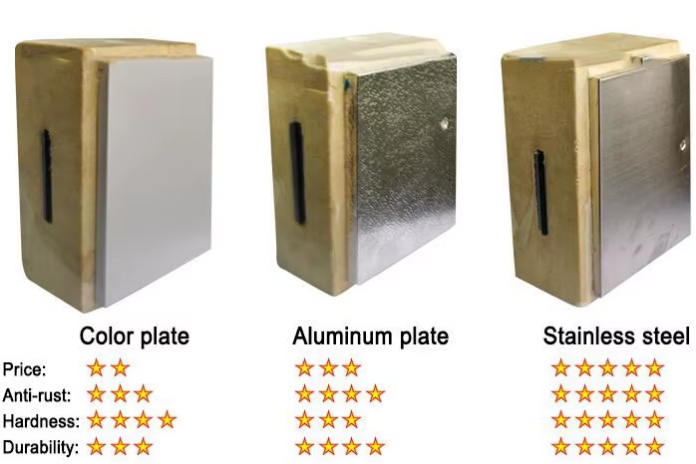

2. Panels surface steel

Types	Color plate	Baosteeel color plate	Galvanized steel	Aluminum steel	Salinization steel	Stainless Steel 304
Steel thickness(mm)	0.426, 0.476	0.5, 0.6 0.8	0.8, 1	0.7, 0.8	0.6	0.5, 0.6, 0.7 0.8,1
Features	Widely use	Famous brand	More durable	Looks nicer	For seafood	For seafood, medicine
